Industruino
Industruino is an Arduino compatible industrial controller. It is suitable both for businesses and individuals looking to
Industrial Application
Take advantage of robust industrial sensors by connecting them through our Ind.I/O board. In other words: ' Goodbye DS1820, hello PT100'.
University Projects
In lab environements which require repetitive actions or constant datalogging our kits can be linked to a server via our ethernet expansion module.
Home Automation
Build your own programmable pumping unit to water your plants whilst you are away on holidays.
About Industruino

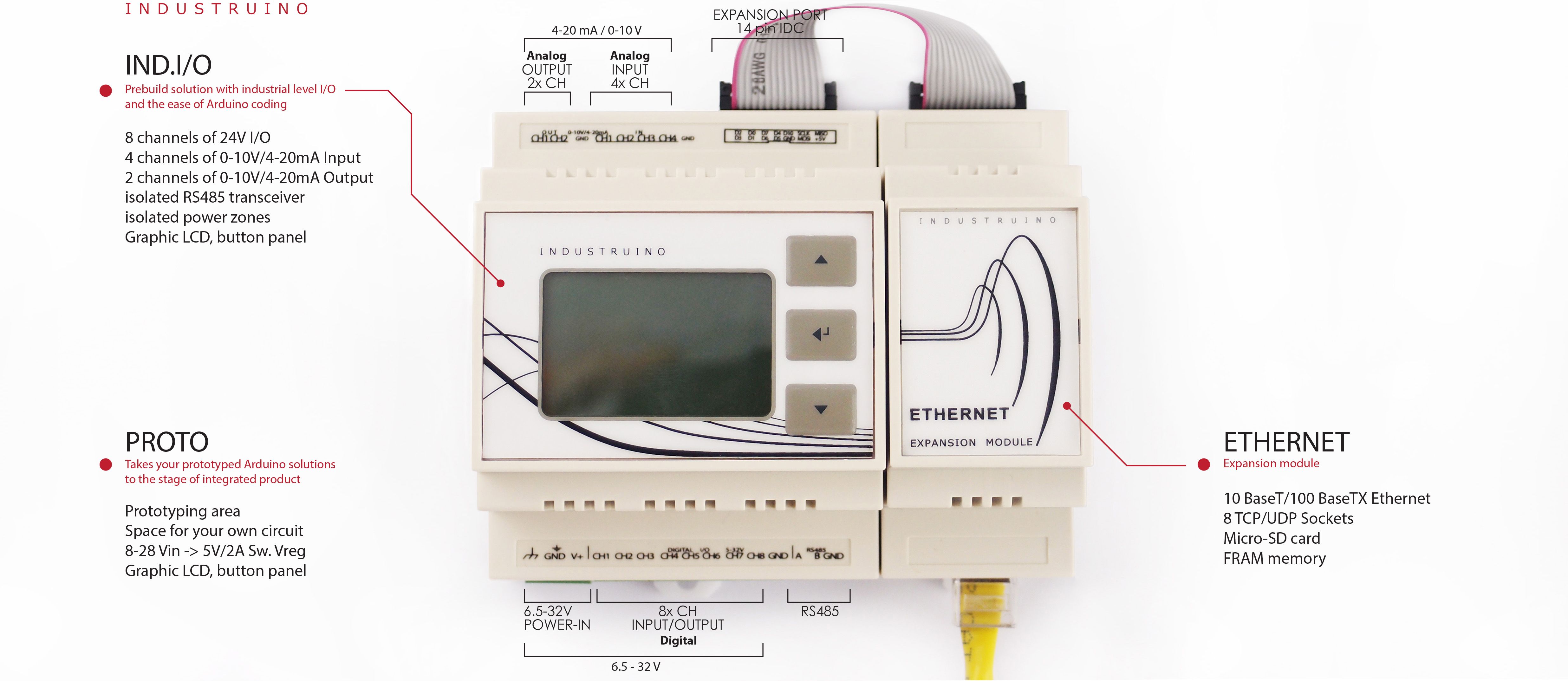

Industruino is an Arduino compatible industrial controller. It is suitable both for businesses and individuals looking to looking to take advantage of the flexibility of Arduino for their PLC automation challenges.
Industruino PROTO
Our "PROTO" platform lets you take your prototyped Arduino solutions to the stage of integrated product, by housing your custom circuitry onto the enclosed prototyping area.
Industruino IND.I/O
Our "IND.I/O" platform is ideal in situations where you need an out of the box pre-built solution offering a range of industrial voltage level I/O. All controlled with the ease of Arduino coding.
Expansion Modules
Build your own programmable pumping unit to water your plants whilst you are away on holidays.
- Atmega 32u4 MCU
- Flash 32 KB (of which 4 KB used by bootloader)
- SRAM 2.5 KB
- EEPROM 1 KB
- Digital I/O Pins: 17
- PWM Pins: 6
- Analog Input Pins: 7
- Atmega AT90USB1286 MCU
- Flash Memory 128 KB (of which 4 KB used by bootloader)
- SRAM 8 KB
- EEPROM 4 KB
- Digital I/O Pins: 17
- PWM Pins: 6
- Analog Input Pins: 5
PROTO

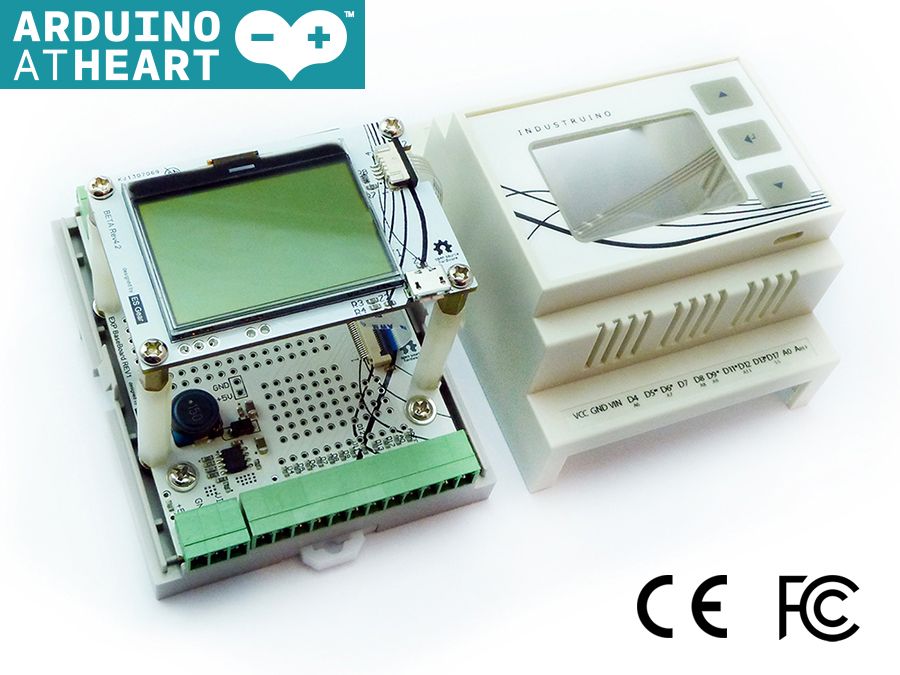

The Proto Baseboard stands for "Prototyping". The standard Industruino comes with this prototyping baseboard. It offers you plenty of space and flexibility to add your own components.
It has a large prototyping area, a 14pin IDC expansion port and a 7-28Vin ->5V/2A out voltage regulator.
This board can be used if you have some small circuitery that currently lives on a breadboard next to your Arduino. By placing it onto this Baseboard you make sure your project looks like a finished product and it is protected from the outside world.
We offer Eagle design files for this board which can be used as a starting point for your own mass-manufactured product. Customise your I/O board, let us take care of the rest.
IND.I/O

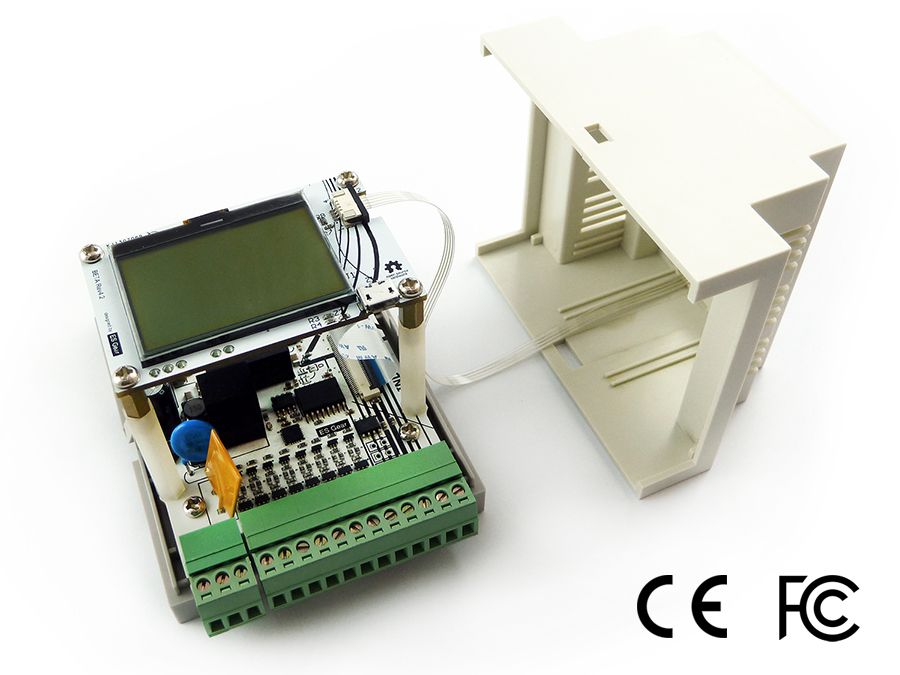

The Ind.I/O Baseboard stands for "Industrial level I/O". The board offers an abundance of interface options, and has isolated power supplies for each of its three functional zones.
This Baseboard is an interfacing solution to bridge the gap between Arduino compatibility and the world of PLC, robust industrial sensors and actuators. All field peripherals are isolated from the microcontroller via digital isolators and communicate via i2c protocol.
The board includes 8ch 24V I/O, 4ch 0-10V/4-20mA 18bit ADC, 2ch 0-10V/4-20mA 12bit DAC, isolated RS485 transceiver, isolated power zones.
The board is supplied with Arduino libraries, allowing you to easily interface with industrial level sensors and actuators, using your favorite software tools.
Ethernet Module
Internet Connectivity Expansion Module
Internet Connectivity

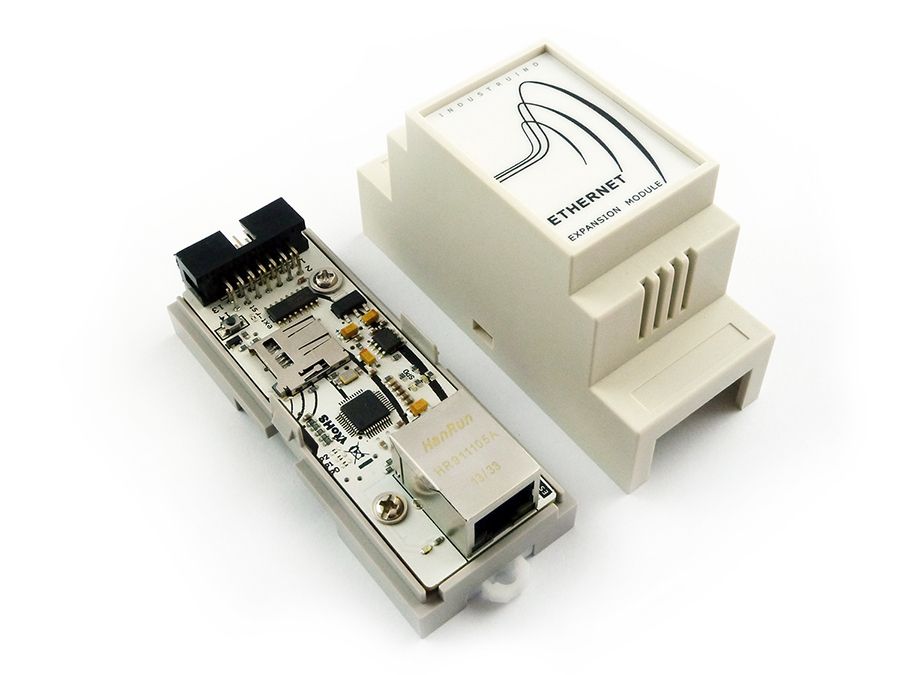

The Ethernet module is an external expansion module for Industruino. It adds internet connectivity to your existing Industruino installation.
Expansion Module
The 14pin IDC expansion port on the Baseboards enable you to connect to external communication and interface modules such as our Ethernet expansion module.
Data Visualization
Ideal to use for online date visualization, moving your process control installation into the age of IoT.
This DIN-rail mountable module adds network connectivity to your Industruino. It easily connects to the Industruino EXP or IND.I/O kit through the 14p IDC expansion port.
The module is complemented by a Micro-SD card slot and 8KB of non-volatile FRAM memory. The SD memory is ideal for storing large files, such as used in data logging projects. The FRAM memory is ideal for fast and repeated storage of small values such system status and configuration data. The FRAM memory is non-volatile, so it enables you to keep data during power cycling without needing a battery backup.
Application:
- IoT devices (Internet of Things)
- Data logging
- Remote system management
A range of example code is provided, which will enable you to very quickly build a product that is internet connected. We have also included code that can be used to publish your sensor data to the Emoncms.org platform for easy visualisation. Using this sample code and our Industruino + Ethernet package you can have your sensor data available online within minutes.
