Below is the Arduino sketch which was used for the video:

/* Indio Library, for Industruino - wwww.industruino.com
This library enables communication with the Industruino IND.I/O Baseboard.

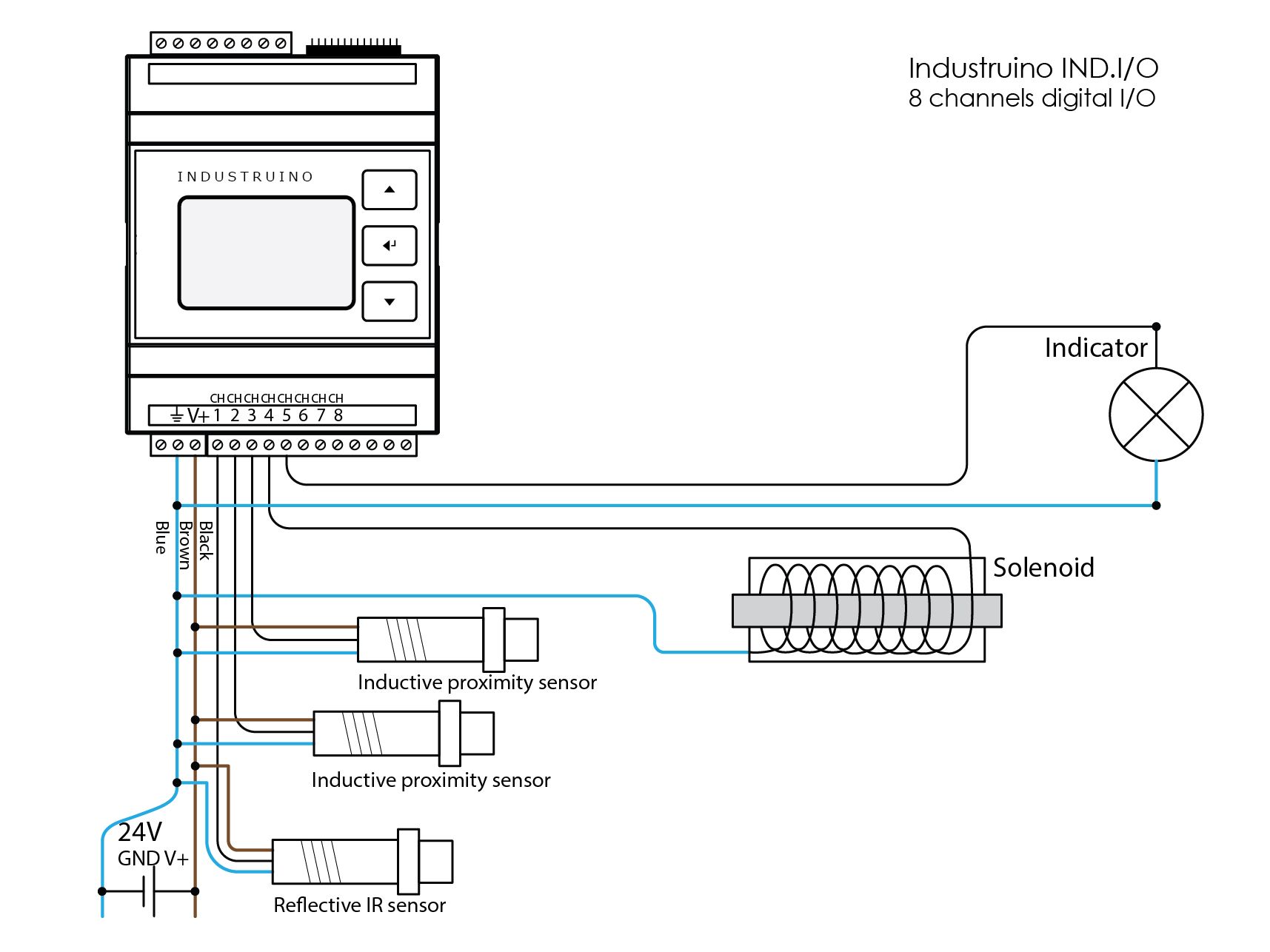

The IND.I/O Baseboard has 8CH of 24V digital I/O (6.5-32V supported), 4CH 0-10V/4-20mA ADC, 2CH 0-10V/4-20mA DAC, RS485 transceiver.

WARNING!: PLEASE BE VERY CAREFUL WHEN CONNECTING PERIPHERALS TO YOUR IND.I/O AND CONFIGURING THE DIRECTION OF THE I/O.
          THE FAILURE MODE OF A 24V SHORTED CONNECTION IS MUCH MORE SPECTACULAR THAN WHEN WORKING AT 5V.

*/
#include <Indio.h> //include IND.I/O library
#include <Class_define.h> // required for IND.I/O library
#include <Wire.h> // required for IND.I/O library
#include <UC1701.h> // include UC1701 LCD library
static UC1701 lcd;

int inductive = 0; //integer to hold PNP inductive proximity sensor state
int capacitive = 0; //integer to hold PNP capacitive proximity sensor state
int reflective = 0; //integer to hold PNP reflective IR proximity sensor state
int var = 0; // integer to count down process length

int ledState = LOW;             // ledState used to set the LED
long previousBlinkMillis = 0; // will store last time LED was updated
long interval = 100;           // interval at which to blink (milliseconds)

void setup()
{

  pinMode(13, OUTPUT); //set backlight pin to output
  analogWrite(13, 240); //set backlight intesity
// INDI.I/O Baseboard has 8 channels of bidirectional 24V I/O (6.5-32V supported).
// Here we choose the direction of each I/O channel.
    lcd.begin();
   Indio.digitalMode(1,INPUT);  // Set CH1 as an input
   Indio.digitalMode(2,INPUT);  // Set CH2 as an input
   Indio.digitalMode(3,INPUT);  // Set CH3 as an input

   Indio.digitalMode(6,OUTPUT);  // Set CH6 as an output
   Indio.digitalMode(7,OUTPUT);  // Set CH7 as an output
   Indio.digitalMode(8,OUTPUT);  // Set CH8 as an output
   Indio.digitalWrite(8,LOW); // Set CH8 to low (0V)

//print lcd header
  lcd.setCursor(0, 1);
  lcd.print("Reflective");
  lcd.setCursor(0, 2);
  lcd.print("Capacitive");
  lcd.setCursor(0, 3);
  lcd.print("Inductive");

 }

void loop()
{

//test each sensor for HIGH or LOW
  if (Indio.digitalRead(1) == 1){
    reflective = 0;
  lcd.setCursor(64, 1);
  lcd.print("LOW ");
}

 if (Indio.digitalRead(1) == 0){
     reflective = 1;
  lcd.setCursor(64, 1);
  lcd.print("HIGH");
}

  if(Indio.digitalRead(2) == 1){
    capacitive = 1;
  lcd.setCursor(64, 2);
  lcd.print("HIGH");
  }

  if(Indio.digitalRead(2) == 0){
    capacitive = 0;
  lcd.setCursor(64, 2);
  lcd.print("LOW ");

  }

  if(Indio.digitalRead(3) == 1){
    inductive = 1;
  lcd.setCursor(64, 3);
  lcd.print("HIGH");
  }

  if(Indio.digitalRead(3) == 0){
    inductive = 0;
  lcd.setCursor(64, 3);
  lcd.print("LOW ");
  }

//test for combinations of sensors triggered
  if (inductive == 1 && reflective == 1) {
  lcd.clear();
  lcd.setCursor(20, 3);
  lcd.print("Metal detected");
  lcd.setCursor(20, 5);
  lcd.print("Seperating...");
  Indio.digitalWrite(8,HIGH);

//flash indicator lamp and trigger solenoid for 3 seconds
var = 0;
while(var < 30){

 unsigned long currentBlinkMillis = millis();
  if(currentBlinkMillis - previousBlinkMillis > interval) {
    // save the last time you blinked the LED
    previousBlinkMillis = currentBlinkMillis;

    // if the LED is off turn it on and vice-versa:
    if (ledState == LOW)
      ledState = HIGH;
    else
      ledState = LOW;

    // set the LED with the ledState of the variable:
    Indio.digitalWrite(7,ledState);
     var++;
  }

}

//end flashing of LED and turn of solenoid
  Indio.digitalWrite(8,LOW);
  lcd.clear();
  lcd.setCursor(0, 1);
  lcd.print("Reflective");
  lcd.setCursor(0, 2);
  lcd.print("Capacitive");
  lcd.setCursor(0, 3);
  lcd.print("Inductive");
}

}
