Industruino IND.I/O D21G

130.00 130.00 130.0 EUR

Add to Cart


30-day money-back guarantee
Shipping from Belgium or HK

Description

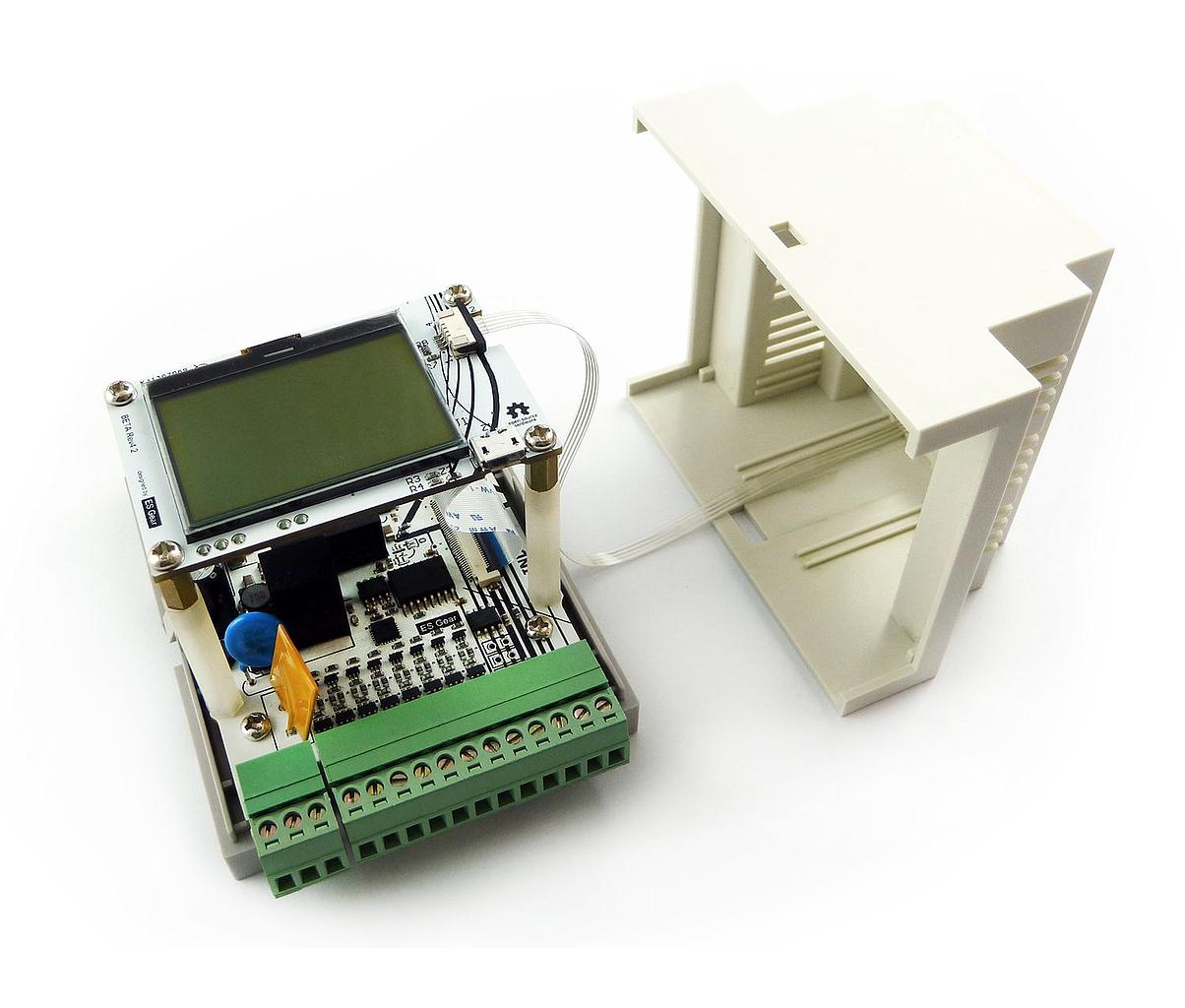

The IND-I/O kit consists of all the parts to make an Industruino with isolated industrial level I/O capability.

Parts included are:

  1. Topboard (ATSAMD21G Microcontroller and LCD screen)
  2. IND-I/O Baseboard (Industrial isolated I/O interface board)
  3. Mounting hardware
  4. Enclosure with membrane button panel.

Weight (kg): 0.2
Tariff no: 85371091

Product Features

  • Industrial I/O levels (24V digital I/O, 0-10V/4-20mA analog I/O)
  • Isolated RS485 transceiver
  • All I/O and power available through detachable screw connectors
  • DIN-rail mountable
  • Fully enclosed
  • 128x64 pixels LCD with backlight
  • 3 button membrane panel
  • Pre-loaded with interactive LCD menu firmware (code examples available for download below)
  • Fully compatible with the Arduino IDE

Isolated Zones of Ind.I/O

Analog field section

  • Analog Input Channels: 4
  • Analog Output Channels: 2
  • Analog levels: 0-10V/4-20mA (switchable in software)
  • Analog Input resolution: 18 bit
  • Analog Output resolution: 12 bit
  • Fully isolated from MCU and digital side (1kV isolation)

Digital field section

  • Supply voltage: 8-28V
  • Digital I/O Channels: 8
  • Digital input voltage range: 3.3-28V
  • Digital output voltage range: Tied to Vin (8-28V)
  • Output current per digital pin 2.3A (Short circuit, over-current, over-temp protected).
  • Total output current: 6A (omni block fused)
  • Fully isolated from MCU and analog side (1kV isolation)
  • Half Duplex RS485 transceiver

MCU section

  • Flash Memory 256 KB
  • SRAM 32 KB
  • EEPROM 1 KB
  • Clock Speed 48 MHz
  • MCU Operating Voltage 3.3V / 5V tolerant
  • U8G & UC1701 library compatible LCD
  • 3 button membrane panel connected to pins D23-D25.
  • LCD backlight PWM controlled via pin D26.
  • Battery backed RTC with scheduled interrupts.
  • TFTP Ethernet bootloader

Documentation

Pinout diagram

Downloads

Industruino Ind.I/O support files

The Industruino IND.I/O libraries and board definition files can be downloaded here

Ind.I/O D21G Pinout Map

Download

Ind.I/O 32u4 Pinout Map

Download

Ind.I/O 1286 Pinout Map

Download

Ind.I/O Manual

Download

Ind.I/O Datasheet

Download
