Let's now look at the sketch for the Industruino. We can start with the library example ttn-otaa.ino

We just need to insert our APPEUI, DEVEUI, APPKEY that we got in the TTN console for our device.

And we also need to define which pins we are using, in the lmic_pinmap.

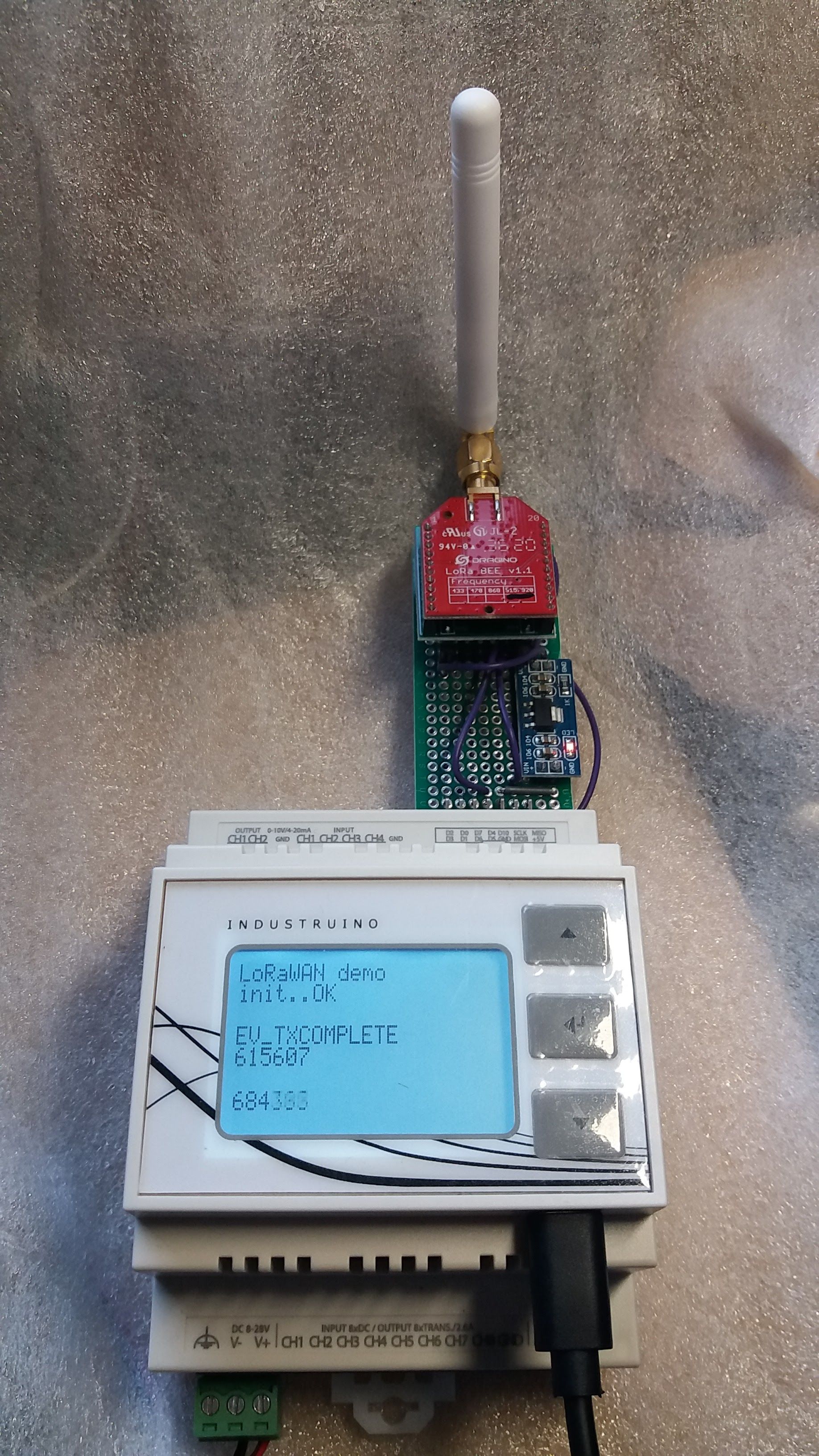

I have modified this example sketch to include feedback on the Industruino LCD, and instead of the 'hello world' string, send the uptime (millis) as 4 bytes of a uint32_t.

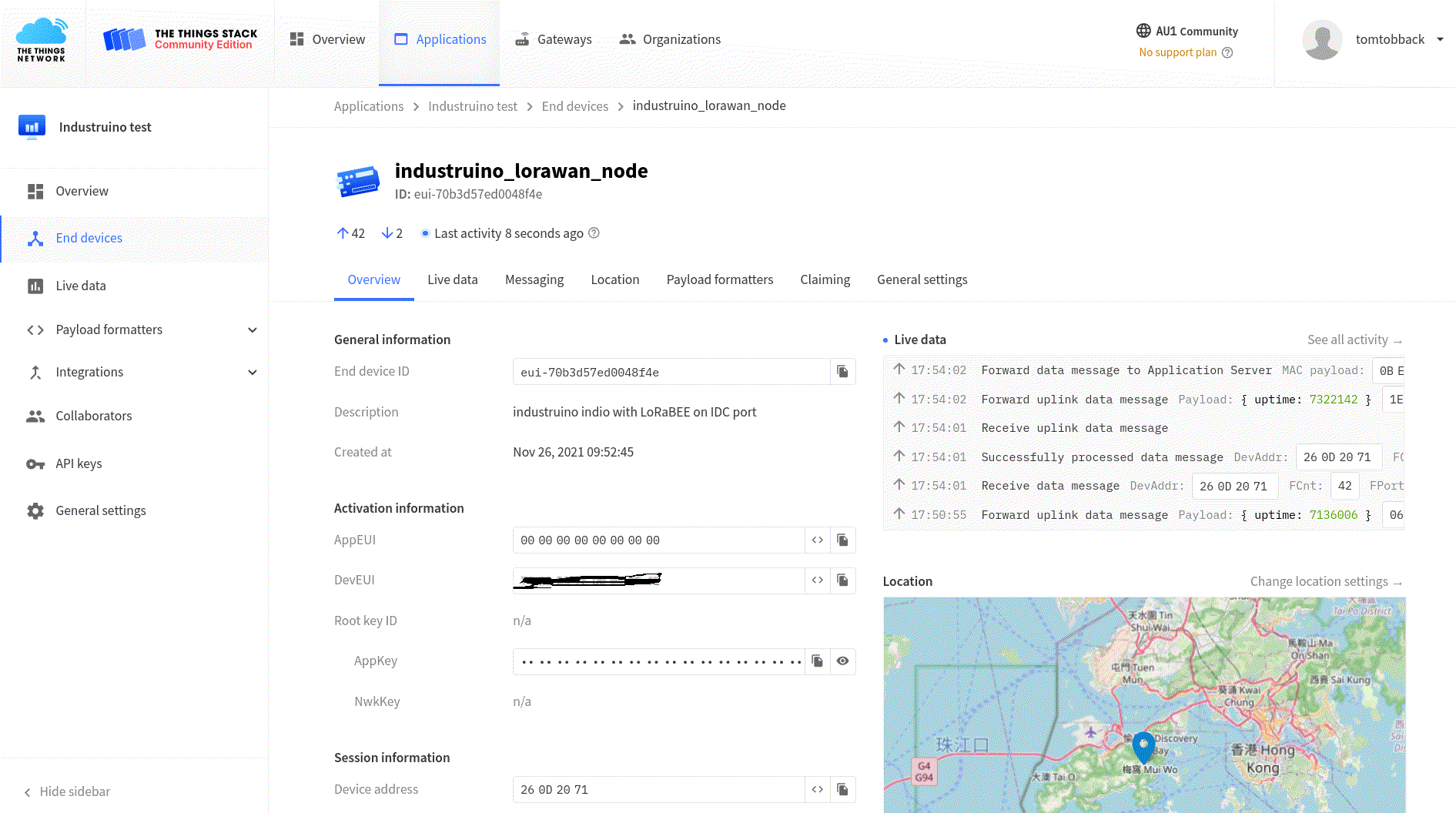

You can check in your TTN console if the data are arriving, and you can create data formatters there to decode your incoming data (uplink). You can also send data to your device (downlink) in the console, and below sketch will print the received bytes in the Serial Monitor.

TTN provides an MQTT integration, which means that you can subscribe to the TTN MQTT broker to receive LoRaWAN data, and also use MQTT for downlink.

/*******************************************************************************
   Copyright (c) 2015 Thomas Telkamp and Matthijs Kooijman
   Copyright (c) 2018 Terry Moore, MCCI
   modified by Tom Tobback for Industruino, Dec 2021

   Permission is hereby granted, free of charge, to anyone
   obtaining a copy of this document and accompanying files,
   to do whatever they want with them without any restriction,
   including, but not limited to, copying, modification and redistribution.
   NO WARRANTY OF ANY KIND IS PROVIDED.

   This example sends a valid LoRaWAN packet with payload "Hello,
   world!", using frequency and encryption settings matching those of
   the The Things Network.

   This uses OTAA (Over-the-air activation), where where a DevEUI and
   application key is configured, which are used in an over-the-air
   activation procedure where a DevAddr and session keys are
   assigned/generated for use with all further communication.

   Note: LoRaWAN per sub-band duty-cycle limitation is enforced (1% in
   g1, 0.1% in g2), but not the TTN fair usage policy (which is probably
   violated by this sketch when left running for longer)!

   To use this sketch, first register your application and device with
   the things network, to set or generate an AppEUI, DevEUI and AppKey.
   Multiple devices can use the same AppEUI, but each device has its own
   DevEUI and AppKey.

   Do not forget to define the radio type correctly in
   arduino-lmic/project_config/lmic_project_config.h or from your BOARDS.txt.

 *******************************************************************************/

// Industruino LCD
#include <UC1701.h>
static UC1701 lcd;
#define LCD_PIN 26

// LoRaWAN from https://github.com/mcci-catena/arduino-lmic
#include <lmic.h>
#include <hal/hal.h>
#include <SPI.h>
/*
  TT: for this library to work, we need to add a few parameters in project_config/lmic_project_config.h
  #define CFG_as923 1
  #define CFG_sx1276_radio 1
  #define LMIC_PRINTF_TO SerialUSB
  #define LMIC_DEBUG_LEVEL 2
  #define LMIC_FAILURE_TO SerialUSB
*/

// This EUI must be in little-endian format, so least-significant-byte
// first. When copying an EUI from ttnctl output, this means to reverse
// the bytes. For TTN issued EUIs the last bytes should be 0xD5, 0xB3,
// 0x70.
static const u1_t PROGMEM APPEUI[8] = { 0, 0, 0, 0, 0, 0, 0, 0 }; // TTN suggests all zeros
void os_getArtEui (u1_t* buf) {
  memcpy_P(buf, APPEUI, 8);
}

// This should also be in little endian format, see above.
static const u1_t PROGMEM DEVEUI[8] = { 0x4E, 0x8F, 0x04, 0xD0, 0x7E, 0xD5, 0xB3, 0x70 };  // TTN DevEUI reverse - REPLACE
void os_getDevEui (u1_t* buf) {
  memcpy_P(buf, DEVEUI, 8);
}

// This key should be in big endian format (or, since it is not really a
// number but a block of memory, endianness does not really apply). In
// practice, a key taken from ttnctl can be copied as-is.
static const u1_t PROGMEM APPKEY[16] = { xxxxxxxxxx }; // TTN AppKey - REPLACE
void os_getDevKey (u1_t* buf) {
  memcpy_P(buf, APPKEY, 16);
}

static osjob_t sendjob;

// Schedule TX every this many seconds (might become longer due to duty
// cycle limitations).
const unsigned TX_INTERVAL = 180;

// INDUSTRUINO Pin mapping
const lmic_pinmap lmic_pins = {
  .nss = 10,                // industruino IDC: CS lora
  .rxtx = LMIC_UNUSED_PIN,
  .rst = LMIC_UNUSED_PIN,   // industruino IDC: no pins left, leave disconnected
  .dio = {5, 7, LMIC_UNUSED_PIN}, // industruino IDC: no pins left, we don't need FSK
};

// helper function for lorawan
void printHex2(unsigned v) {
  v &= 0xff;
  if (v < 16)
    SerialUSB.print('0');
  SerialUSB.print(v, HEX);
}

// event handler for lorawan
void onEvent (ev_t ev) {
  SerialUSB.print(os_getTime());
  SerialUSB.print(": ");
  lcd.setCursor(0, 3);
  switch (ev) {
    case EV_SCAN_TIMEOUT:
      SerialUSB.println(F("EV_SCAN_TIMEOUT"));
      lcd.print("EV_SCAN_TIMEOUT       ");
      break;
    case EV_BEACON_FOUND:
      SerialUSB.println(F("EV_BEACON_FOUND"));
      lcd.print("EV_BEACON_FOUND       ");
      break;
    case EV_BEACON_MISSED:
      SerialUSB.println(F("EV_BEACON_MISSED"));
      lcd.print("EV_BEACON_MISSED       ");
      break;
    case EV_BEACON_TRACKED:
      SerialUSB.println(F("EV_BEACON_TRACKED"));
      lcd.print("EV_BEACON_TRACKED       ");
      break;
    case EV_JOINING:
      SerialUSB.println(F("EV_JOINING"));
      lcd.print("EV_JOINING       ");
      break;
    case EV_JOINED:
      SerialUSB.println(F("EV_JOINED"));
      lcd.print("EV_JOINED       ");
      {
        u4_t netid = 0;
        devaddr_t devaddr = 0;
        u1_t nwkKey[16];
        u1_t artKey[16];
        LMIC_getSessionKeys(&netid, &devaddr, nwkKey, artKey);
        SerialUSB.print("netid: ");
        SerialUSB.println(netid, DEC);
        SerialUSB.print("devaddr: ");
        SerialUSB.println(devaddr, HEX);
        SerialUSB.print("AppSKey: ");
        for (size_t i = 0; i < sizeof(artKey); ++i) {
          if (i != 0)
            SerialUSB.print("-");
          printHex2(artKey[i]);
        }
        SerialUSB.println("");
        SerialUSB.print("NwkSKey: ");
        for (size_t i = 0; i < sizeof(nwkKey); ++i) {
          if (i != 0)
            SerialUSB.print("-");
          printHex2(nwkKey[i]);
        }
        SerialUSB.println();
      }
      // Disable link check validation (automatically enabled
      // during join, but because slow data rates change max TX
      // size, we don't use it in this example.
      LMIC_setLinkCheckMode(0);
      break;
    /*
      || This event is defined but not used in the code. No
      || point in wasting codespace on it.
      ||
      || case EV_RFU1:
      ||     SerialUSB.println(F("EV_RFU1"));
      ||     break;
    */
    case EV_JOIN_FAILED:
      SerialUSB.println(F("EV_JOIN_FAILED"));
      lcd.print("EV_JOIN_FAILED       ");
      break;
    case EV_REJOIN_FAILED:
      SerialUSB.println(F("EV_REJOIN_FAILED"));
      lcd.print("EV_REJOIN_FAILED       ");
      break;
    case EV_TXCOMPLETE:
      SerialUSB.println(F("EV_TXCOMPLETE (includes waiting for RX windows)"));
      lcd.print("EV_TXCOMPLETE       ");
      if (LMIC.txrxFlags & TXRX_ACK)
        SerialUSB.println(F("Received ack"));
      if (LMIC.dataLen) {
        SerialUSB.print(F("Received "));
        SerialUSB.print(LMIC.dataLen);
        SerialUSB.println(F(" bytes of payload"));
        for (int i = 0; i < LMIC.dataLen; i++) {
          SerialUSB.print("0x");
          SerialUSB.print(LMIC.frame[LMIC.dataBeg + i], HEX);
          SerialUSB.print(" ");
        }
        SerialUSB.println();
      }
      // Schedule next transmission
      os_setTimedCallback(&sendjob, os_getTime() + sec2osticks(TX_INTERVAL), do_send);
      break;
    case EV_LOST_TSYNC:
      SerialUSB.println(F("EV_LOST_TSYNC"));
      lcd.print("EV_LOST_TSYNC       ");
      break;
    case EV_RESET:
      SerialUSB.println(F("EV_RESET"));
      lcd.print("EV_RESET       ");
      break;
    case EV_RXCOMPLETE:
      // data received in ping slot
      SerialUSB.println(F("EV_RXCOMPLETE"));
      lcd.print("EV_RXCOMPLETE       ");
      break;
    case EV_LINK_DEAD:
      SerialUSB.println(F("EV_LINK_DEAD"));
      lcd.print("EV_LINK_DEAD       ");
      break;
    case EV_LINK_ALIVE:
      SerialUSB.println(F("EV_LINK_ALIVE"));
      lcd.print("EV_LINK_ALIVE       ");
      break;
    /*
      || This event is defined but not used in the code. No
      || point in wasting codespace on it.
      ||
      || case EV_SCAN_FOUND:
      ||    SerialUSB.println(F("EV_SCAN_FOUND"));
      ||    break;
    */
    case EV_TXSTART:
      SerialUSB.println(F("EV_TXSTART"));
      lcd.print("EV_TXSTART       ");
      break;
    case EV_TXCANCELED:
      SerialUSB.println(F("EV_TXCANCELED"));
      lcd.print("EV_TXCANCELED       ");
      break;
    case EV_RXSTART:
      /* do not print anything -- it wrecks timing */
      break;
    case EV_JOIN_TXCOMPLETE:
      SerialUSB.println(F("EV_JOIN_TXCOMPLETE: no JoinAccept"));
      lcd.print("EV_JOIN_TXCOMPLETE       ");
      break;

    default:
      SerialUSB.print(F("Unknown event: "));
      SerialUSB.println((unsigned) ev);
      break;
  }
  SerialUSB.println();
}

// regular sending job
void do_send(osjob_t* j) {
  // Check if there is not a current TX/RX job running
  if (LMIC.opmode & OP_TXRXPEND) {
    SerialUSB.println(F("OP_TXRXPEND, not sending"));
  } else {
    // Prepare upstream data transmission at the next possible time.
    union long2bytes {
      uint32_t u;
      uint8_t b[4];
    };
    union long2bytes uptime;
    uptime.u = millis();
    LMIC_setTxData2(1, uptime.b, sizeof(uptime.b), 0);
    SerialUSB.print(F("Packet queued: "));
    SerialUSB.println(uptime.u);
    lcd.setCursor(0, 3);
    lcd.print("packet queued:       ");
    lcd.setCursor(0, 4);
    lcd.print(uptime.u);
  }
  // Next TX is scheduled after TX_COMPLETE event.
}

////////////////////////////////////////////////////////////////////////////////

void setup() {
  SerialUSB.begin(115200);
  pinMode(LCD_PIN, OUTPUT);
  digitalWrite(LCD_PIN, HIGH);
  lcd.begin();
  lcd.print("LoRaWAN demo");
  delay(2000); // for Industruino
  SerialUSB.println();
  SerialUSB.println(F(">>> LoRaWAN demo"));

  SerialUSB.print(F(">>> init radio.."));
  lcd.setCursor(0, 1);
  lcd.print("init..");
  // LMIC init
  os_init();
  // Reset the MAC state. Session and pending data transfers will be discarded.
  LMIC_reset();
  SerialUSB.println(F("OK"));
  lcd.print("OK");

  // Start job (sending automatically starts OTAA too)
  SerialUSB.println(F(">>> start sendjob task"));
  do_send(&sendjob);
  SerialUSB.println(F(">>> end of setup"));

}

////////////////////////////////////////////////////////////////////////////////

void loop() {
  os_runloop_once();
  lcd.setCursor(0, 6);
  lcd.print(millis());
}

////////////////////////////////////////////////////////////////////////////////
