Monolever Switch

  • Model

0.00 € 0.00 € 0.0 EUR

Product not available

Add to Cart

30-day money-back guarantee
Shipping from Belgium or HK

Description

  • You can smoothly and swiftly handle the lever in four directions upward, downward, leftward and rightward.
  • Three alternatives of movement are attainable in each direction: Maintained, blocked, and spring return.
  • Rubber bushing is waterproof, oil resistant and dust protected.

​

Electrical ratings

AC Rated voltage 110V 220V 440V
Rated current 10A 6A 3A
Breaking current capacity 50A 30A 10A
DC Resistive Load Rated Voltage 110V 220V 600V
Rated Current 2.2A 1.1A 0.4A
Breaking Current 2.42A 1.21A 0.44A
Inductive Load Rated Current 1.2A 0.45A 0.2A
Breaking Current 1.32A 0.5A 0.22A

Specifications

Items Code Description
① Type CMR Round type
CMS Square type
CMRS Round type
CMRN Seal Round
CMSN Seal Square
CMRSN Seal Round
② Mounting Hole 30 Φ30m/m only
③ No.of contact Blocks fitted 1~4 1~4
④ Lever action 0 Blocked
1 Maintained
2 Spring return
⑤ Type of contact Blocks fitted 00 None
10 1a(1NO)
20 2a(2NO)
01 1b(1NC)
02 2b(2NC)
11 1a1b(1NO-1NC)



Model classifacation

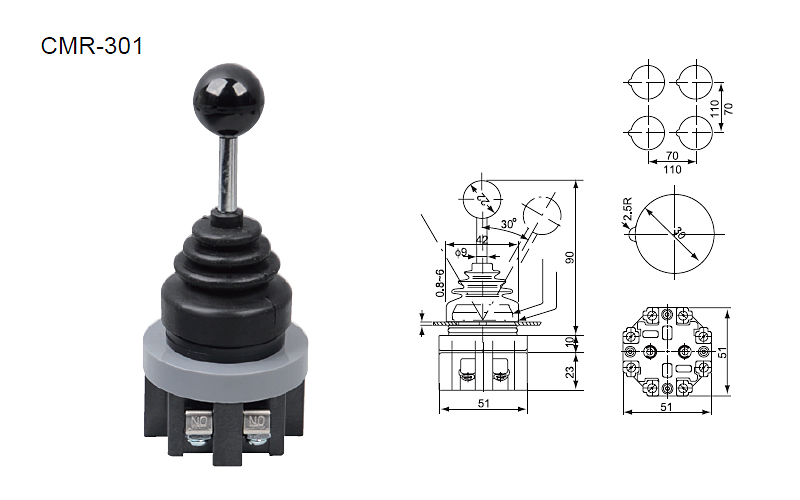

CMR-301

CMR-302

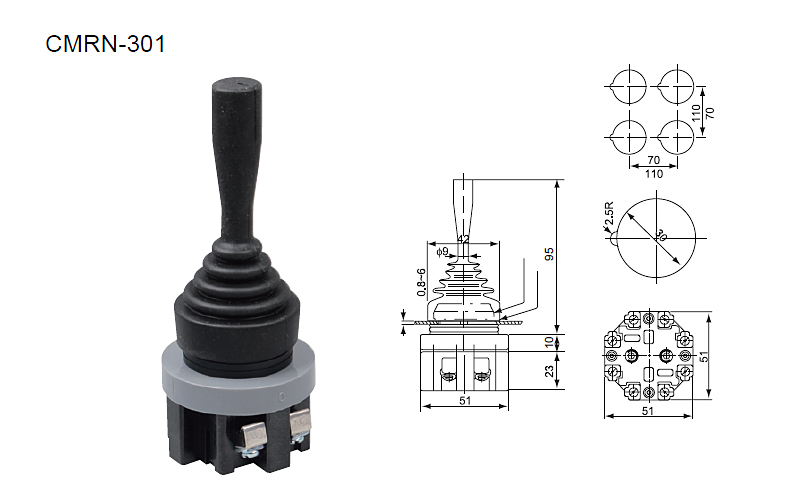

CMRN-301

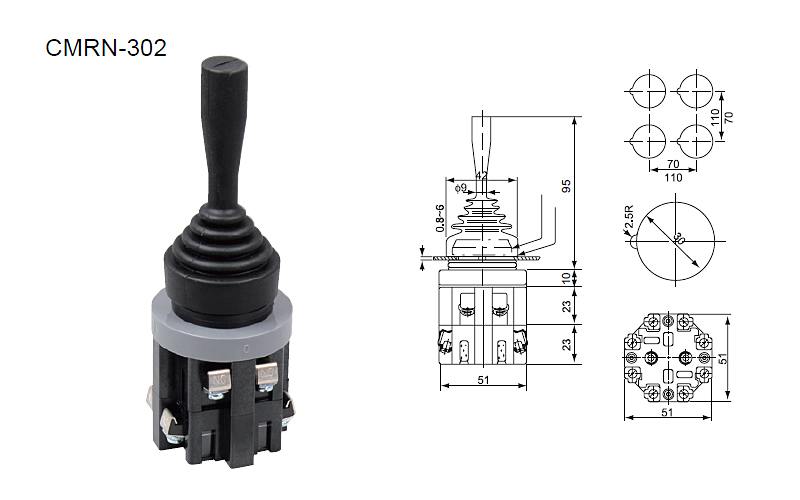

CMRN-302

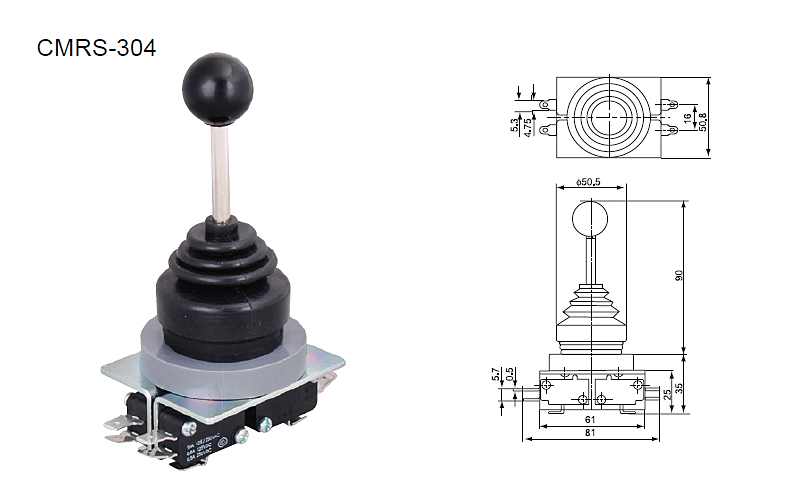

CMRS-304

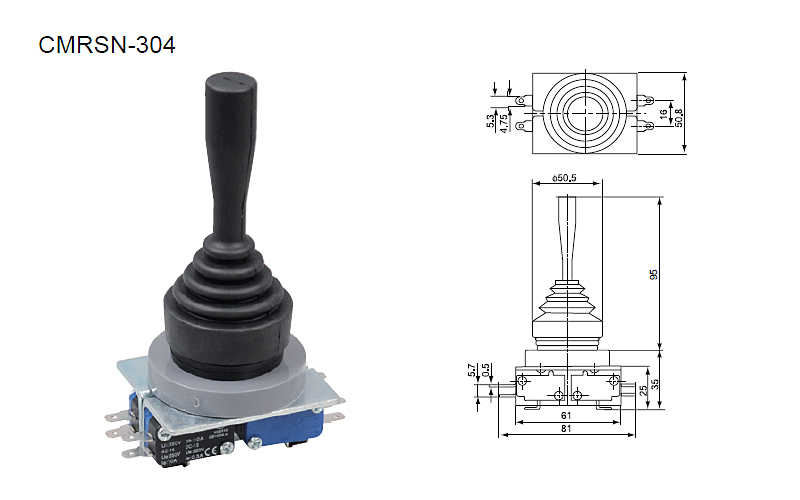

CMRSN-304

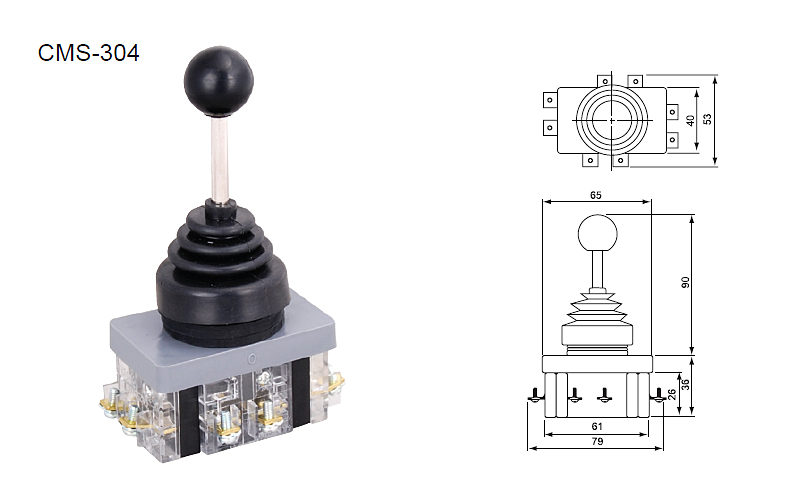

CMS-304



CMSN-304
